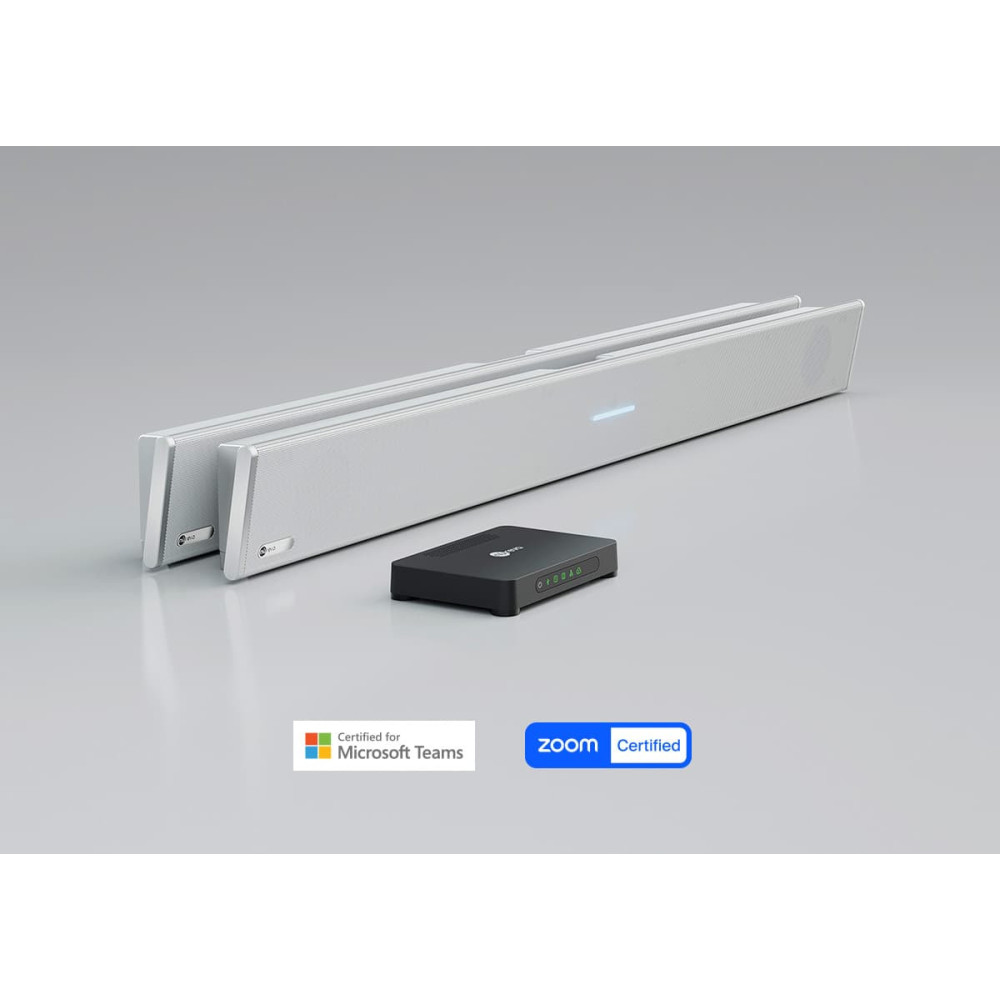

HDL410 Audio Conferencing System - White

Microphones

24 low-noise omnidirectional MEMS (12 in each microphone and speaker bar)
Frequency response at 94 dB SPL 100 Hz to 7 kHz
Total harmonic distortion (THD) 0.25% (typical)

Speakers

4 x 20 W 4" aluminum cone (2 in each microphone and speaker bar)
Total harmonic distortion (THD) 0.25% (typical)

Connect module

USB 2.0 interface to computer or collaboration hub, type B
Auxiliary out — 3.5 mm single-ended stereo jack
Auxiliary in — 3.5 mm single-ended stereo jack
2 connections to microphone and speaker bar RJ45
Console Direct RJ45 for connecting to network
Input jack for power supply  

OPERATING  

System requirements

Windows® 10 and 11
macOS® 14 and 15 (Sonoma and Sequoia) 

Power

Power rating: universal switching 100–240 V AC, 50–60 Hz
Power consumption: <30 W  

Environmental

Operating temperature: 0° C to 40° C
(32° F to 104° F)
Storage temperature: -20° C to 70° C (-4° F to 158° F), humidity 5–90% (noncondensing)  

DIMENSIONS
 

Integrated microphone and speaker bar (each)

Width: 60.0" (152.4 cm)
Height: 5.91" (14.9 cm)
Depth: 3.5" (9.0 cm)
Weight: 18.0 lb. (8.2 kg)

Connect module

Width: 8.7" (22.2 cm)
Height: 1.46" (3.7 cm)
Depth: 5.91" (15.0 cm)
Weight: 0.97 lb. (0.44 kg)  

Shipping (box one)

Width: 64.75" (164.4 cm)
Height: 10.63" (27.0 cm)
Depth: 9.5" (24.1 cm)
Weight: 28.0 lb. (12.7 kg)

Shipping (box two)

Width: 64.75" (164.4 cm)
Height: 10.63" (27.0 cm)
Depth: 9.5" (24.1 cm)
Weight: 22.0 lb. (10.0 kg)
